NC2130PTZ
Network Camera
Pan, Tilt and Zoom
live video over your network

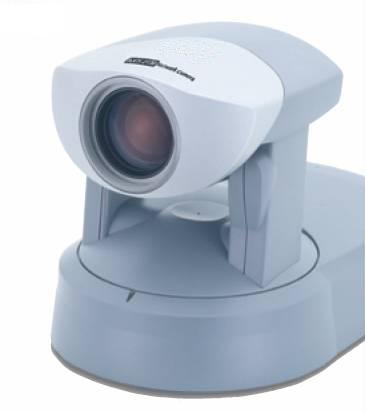

NC2130PTZ
Network Camera is an all-in-one Pan/Tilt/Zoom solution for networks.
With its sharp and responsive Pan/Tilt movement, Auto Focus control,
and powerful optical zoom, it can be quickly orientated to focus
on any detail. View the video image in a standard Web browser
- and with a single click adjust the direction, focus and zoom
of the camera. It's that easy! Offering pre/post alarm and preset
positioning within a compact design, NC2130PTZ Network Camera
is ideal for monitoring large areas from multiple angles. Perfect
for remotely monitoring people and property in buildings, offices,
warehouses, chain stores and retail outlets.
| Features |
 |
PTZ
control from your browser |
|
16
x Optical zoon |
|
Up
to 30 frames per second |
|
Built-in
Web Server |
|
Desk
and ceiling mounted versions available |
| Technical
Specifications - NC2130PTZ Network Camera |
| |
|
| General |
 |
Built
in PTZ with 16x high quality optical zoom |
|
Built-in
web server and network interface. No PC needed for operation. |
|
Linux-based
operating system. |
| Installation |
|
Quick
and easy installation - simply connect to your network, assign
|
| |
an IP-address. |
| Camera |
| Image
sensor |
|
1/4
inch Sony ExView HAD interlaced CCD |
|
HxV:
768x494 |
|
|
Resolution
(pixels): 704x480 |
| Exposure |
|
Backlight
compensation |
|
Automatic
Gain Control (AGC) |
|
Automatic
White Balance (AWB) |
| Sensitivity |
|
Illumination range: min 2 lux |
| Image |
|
High-speed
hardware-based image compression supports high quality JPEG
still images |
| |
and
Motion-JPEG video in full color. |
|
Image frame rate: |
| |
Up
to 30 frames/sec at 352x240 resolution |
| |
Up
to 10 frames/sec at 704x480 resolution |
|
5
levels of compression are available. The file size of a JPEG
compressed image depends on |
| |
the
actual content of the image. |
|
Variable
bandwidth control prevents data saturation on the network.
30 frames/second |
| |
typically requires about 1.5 Mbps |
|
Images containing a lot of detail will generate larger files.
Image quality is controlled by |
| |
the
level of compression. High compression yields smaller files
at the expense of image quality, while low compression results
in larger files, but maintains image quality. The table below
shows average file sizes, derived from real life tests. |
| |
 |
| General
I/O |
|
External
Device I/O: 1 input/1 output |
|
Event-triggered
actions for remote image storage via File Transfer Protocol
(FTP) |
| |
or e-mail (SMTP), pre/post alarm image storage |
| Pre/post
Alarm Buffer |
|
Up
to 4 MB memory available for pre/post alarm image storage |
| Pan/Tilt/Zoom |
|
Optical
zoom: 16x |
|
Pan
angle range: Desk-Mount Version: 200°, Ceiling-Mount Version:
340° |
|
Tilt
angle range: Desk-Mount Version: 60°, Ceiling-Mount Version:
100° |
|
40
preset positions |
|
Home
Position Function |
| System
Requirements |
|
Compatible
with operating systems such as Windows 98, Windows 2000, Windows
XP, |
| |
Windows
NT, Windows ME, Linux, Mac OS and Mac OS X. |
|
Internet
Explorer 4.x, 5.x or Netscape Navigator 4.x. |
| Management |
|
Remote
configuration and status using Web-based tools |
| Supported
Protocols |
|
TCP/IP,
HTTP, FTP, SMTP, ARP, BOOTP, PPP, CHAP, PAP, DHCP and more. |
| Security |
|
Password/username
protection. Restrict access to single users or workgroups,
|
| |
or
open up to the whole Internet community. |
| Hardware |
|
ARTPEC-1
compression chip. |
|
ETRAX
100 LX processor, 32 bit RISC, 100 MIPS CPU |
|
RAM:
16 MB. |
|
FLASH
PROM: 4MB. |
| Connections |
|
RJ45
twisted pair direct network connection for 100BaseTX Fast
and 10BaseT Ethernet. |
|
Input/Output
connector to trigger the camera and control external devices. |
|
Event
triggered remote image storage via e-mail and FTP. |
|
External
power supply connector 13 V DC, 25W |
| Compression |
|
Motion-JPEG,
as well as single snapshot JPEG images. User controlled compression
level. |
| Video
Features |
|
Time
stamp and text overlay. Color control (B/W or color) |
| Networking |
|
10baseT
Ethernet or 100baseTX Fast Ethernet, TCP/IP, HTTP, FTP, SMTP,
NTP, |
| |
ARP,
DHCP, BOOTP |
| Power
Supply |
|
External
power supply 13V AC, power consumption max 25W. |
| Operating
Environment |
|
Requires
proper environmental housing for outdoor use. |
|
Temp:
5-40°C (40-125°F) |
|
Humidity:
20-80% RHG, non-condensing. |
| Dimensions
and Weight |
|
Height:
112 mm (4.4") |
|
Width:
107 mm (4.2") - Desk-Mount; 137 mm (5.4") - Ceiling-Mount |
|
Depth:
143 mm(5.6") |
|
Weight: 640 g (1.4 lb) - Desk-Mount; 730 g (1.6 lb) Ceiling-Mount |
| Approvals |
| EMC:
|
FCC
Class B (DoC), VCCI ClassB, |
| |
AS/NZS3548
ClassB (C-tick) |
| |
EN55022/1994,
EN50024/1998 |
| |
EN61000-3-2/1998, |
| Safety: |
EN
60950, UL, CSA, (JAPAN), AS, SISIR, GS, FIMKO (AC Adapter) |
|
Accessories Included |
|
Power
supply: 13V AC, 25W. |
|
I/O connectors. |
|
