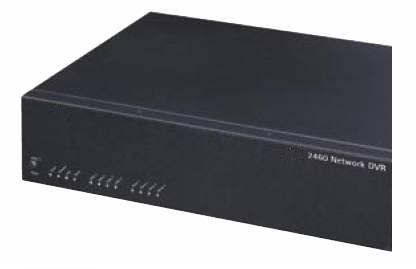

DVR2460 Network Digital Video Recorder
Digital video. Recorded locally. Viewed globally.

Sophisticated, flexible yet brilliant in its simplicity, the award winning DVR2460 Network DVR takes digital video recording to a completely new level of advancement. Connect it directly to a TCP/IP network and remotely access digital video and system administration tools, using a standard web browser. Accommodating up to four analog cameras with or without Pan/Tilt/Zoom, it has its own built-in web server and is completely self-maintained. No need for tapes, tangles or expensive maintenance!

Retaining important video sequences for longer than any other DVR solution, the DVR2460 offers an almost inexhaustible local recording resource for security video - using revolutionary APViS™ Prioritized Video Storage technology*. Used as a single stand-alone system for a small business, or as an autonomous component within a globally distributed video surveillance system, the DVR2460 is perfect for use within large retail chains, franchise operations, or any business that requires convenient network access to live or recorded surveillance video.

*Patented


Features
Stores important video for longer using
  revolutionary APViS Technology
Fault tolerant system with data base
  mirroring and distributed video storage
Self-contained and self-maintained
  system
Simultaneous viewing, recording,
  playback, and administration
  via web browser
Support for Pan/Tilt/Zoom units



Innovative APViS™
Stores important video for longer

Older video recordings can contain vital visual evidence. But when the hard disk in any conventional DVR is full, it is simply the oldest recordings that are indiscriminately erased in order to make room for new ones. It's standard FIFO logic: the First image In is the First one Out. But, is this really the smartest way of managing modern surveillance video?

Using innovative APViS technology, the DVR2460 Network DVR makes more efficient use of valuable disk space to preserve video recordings for longer. Flexible event management makes it possible to define up to 100 separate events, combine scheduling with alarm inputs, and by intelligently using event and alarm data, it cleverly differentiate between 'important' and 'less important' video.

Using these criteria, the DVR2460 is able to store top priority video sequences at their original recording rate up to four times longer than any conventional FIFO storage solution - and up to sixteen times longer using an incrementally reducing framerate. In practical terms, this can be the dramatic difference between having the evidence - and not having it!

Example

The graph below displays typical storage times for APViS 'Extended' recording mode versus conventional 'FIFO' storage, based on the following configuration:
Original recording frame rate = 10
  fps
Average image size = 8kB
1 x camera
4 x 40GB IDE HD
Continuous low priority recording,
  and priority a single top alarm recording with 30 minute duration


Secure Storage. Secure Video.

In security applications, consistent quality of the recorded image is vital. With three different resolutions available per connected camera, the DVR2460 records in Motion JPEG format and guarantees consistent high-quality on each and every image.

The unique use of database mirroring and distributed video storage on all available hard disks allows the DVR2460 to tolerate hard disk failure without losing vital parts of video recordings. The practical implication of hard disk failure is a relative reduction in the frame rate of the recordings.

DVR2460 has three levels of user/password protection, with builtin firewall functionality based on IP filtering for secure remote system access over TCP/IP networks.


Flexible Network Configuration
Stand-alone or components within globally distributed systems

With over 90% of archived video recordings often never even looked at, decentralized video recording avoids unnecessary network utilization and makes sense when network bandwidth is limited.

A DVR2460 Network DVR has its own built-in web server and is securely accessed from any remote geographical location using Microsoft Internet Explorer.

By deploying a single DVR2460 in each remote site, organizations now have the opportunity to build large globally distributed video storage systems, whereby users can view video and control Pan/Tilt/Zoom as well as managing recorded material from anywhere over TCP/IP networks.

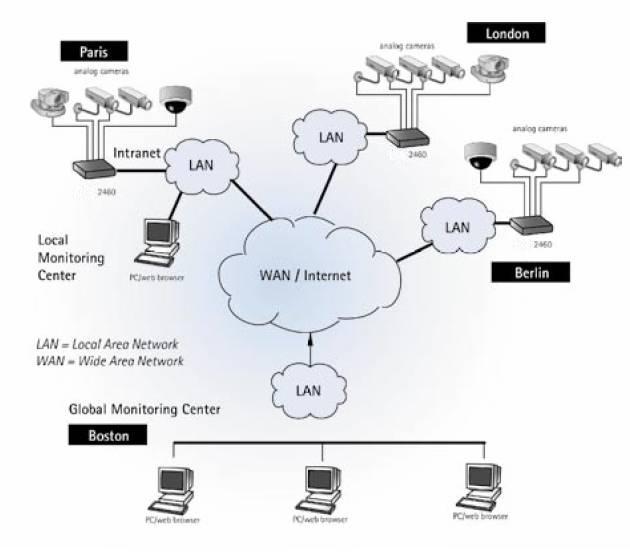

A globally distributed system comprising several DVR2460 Network DVRs


Technical Specifications

DVR2460 Network Digital Video Recorder

General Features
Simultaneous live remote viewing,
  recording, playback and administration via a web browser
Consistent high-quality digital
  images that do not deteriorate with age
Continuous, event/alarm, manual
  and scheduled recording modes
Snapshots and AVI extraction to PC hard disk or any preferred digital media
Self-maintained system requires no physical intervention during normal operation
Self-contained system requires no additional software components
Support for Pan/Tilt/Zoom units
Quad view display
User-selectable settings for frame rate, compression and resolution
Event notification via e-mail
Pre-alarm buffer and recording duration settings
System Requirements
Ethernet network or supported V.90 compatible modem
Internet Explorer 5.x or higher
Supports standard Internet TCP/IP protocols and can be used with: Windows NT/2000,
  Me, and XP
System
100baseTX Fast Ethernet or 10baseT Ethernet
CPU: ETRAX 100 LX 32 bit RISC processor
Flash memory: 4 MB
RAM: 32 MB
Based on Linux version 2.4 operating system
Installation
Physical network connection using RJ-45 twisted pair cable
Installs directly to NTSC or PAL video cameras using BNC connectors
Software Updates
Flash memory allows central and remote updates over the network, using FTP over TCP/IP.
Front Panel Control And Indicators
LED Indicators
4 x video indicators, 4 x alarm active indicators, 1 x power indicator, 1 x status indicator,
  1 x disk activity indicator and 1 x network activity indicator
Push-button Controls
1 soft power on/off button
Resolution
QCIF: 176 x 120 (NTSC), 176 x 144 (PAL)
CIF: 352 x 240 (NTSC), 352 x 288 (PAL)
4CIF: 704 x 480 (NTSC), 704 x 576 (PAL)
Recording Frame Rate
1 camera: CIF, normal compression: 30/25 fps (NTSC/PAL)
4 cameras: CIF, normal compression: 30/25 fps (NTSC/PAL)*
  *Total number of frames with connecting cameras synchronized
Security
User level password protection
Built-in firewall functionality based on IP filtering protects against illicit use from unauthorised
  computers
Storage Capacity
Up to 160 GB (4 x max 40 GB HD)
Storage duration dependent on image settings
Recording availability at CIF resolution, with respect to the available APViS recording and
  compression modes, are provided below:
Connections
Network Connector
  RJ-45 connection to 10/100Mbit Ethernet networks
Video Inputs
  4 x composite video inputs with loop/through connector, selectable 75 ohm, Hi Z termination
  Autosensing for NTSC and PAL
  4 x BNC video loop-through ports
I/O
  Single Terminal Block Connector
  4 x opto-isolated alarm inputs
  1 x output relay
Serial Connector
  9 pin D-SUB RS-232 max 115 Kbps
  9 pin D-SUB RS-232 or RS-485/422 max 115 Kbps, half duplex
Power
  115/230V AC, 50/60 Hz, Max 1A (typically 60W)
Operating Conditions
  Temperature 41-104°F (5-40°C)
  Humidity 20-80% RHG Included
Dimensions and Weight
  Physical Dimensions: 16.9 x 12.6 x 3.9, 430 x 320 x 100 mm
  Delivered with brackets for 19 rack mount
  Weight: No disks V 15.4 Ibs (7 kg), 2 disks V 18.1 Ibs (8.2 kg), 4 disks V 20.7 Ibs (9.4 kg)
Approvals
EMC
  EN55022 Class B, EN55024
  FCC Class A

Safety
  EN60950, C-UL Listed
