 Network
Video Solution

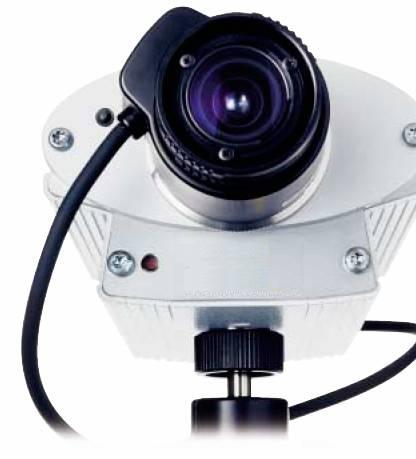

NC2120
Network Camera
Catch it, web it,
watch it…
Complete
with built-in web server and motion detection, the NC2120 Network
Camera is all you need to keep a visual track of events both at
home, and in the office. And of course – it is the perfect tool
for any web attraction application!
With
no PC required for transmitting your images over the WAN/LAN or
the Internet – you're just a network plug away from live remote
monitoring from any convenient desktop.
| Features |
 |
DC-Iris
lens for optimal image quality in outdoor light conditions |
|
Built-in
motion detection |
|
Up
to 30 frames per second |
|
Built-in
Web Server and network connection |
|

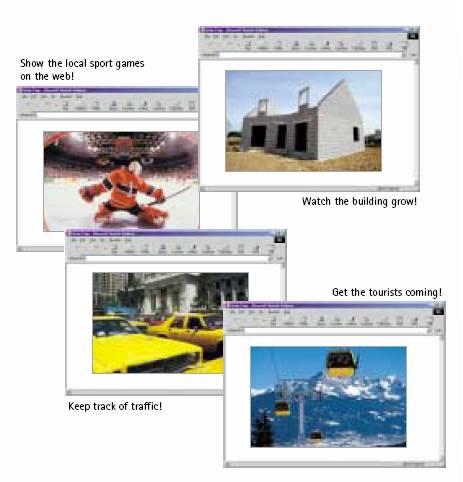

View
live images from any network-connected PC |
|
Audio
functionality available in combination with the AM2191 Audio
Module |
| Technical
Specifications - NC2120 Network Camera |
| |
|
| General |
 |
Built-in
web server and network interface. |
| |
No
PC needed for operation. |
|
Powerful
video motion detection with multiple |
| |
sensitivity
windows. |
|
Linux-based
operating system. |
| Installation |
|
Quick
and easy installation - connect to your |
| |
network, assign an IP-address or use the included null-modem
cable for modem installation. |
| Camera |
|
Digital,
24-bit color |
| Image
sensor |
|
1/3
inch Sony super HAD interlaced CCD |
|
HxV:
768x495 (NTSC), 752x582 (PAL) |
|
|
Resolution
(pixels): 704x480 (NTSC), 704x576 (PAL) |
| Exposure |
|
Backlight
compensation |
|
Automatic
AGC |
|
Automatic
and fixed White Balance |
|
|
Electronic
shutter: 1/60s (1/50s)-1/10.000 sec., NTSC (PAL) |
| Sensitivity |
|
Illumination range: 1 - 200,000 Lux with F1.0 DC-Iris lens.
|
| |
About
1 to 5,000 Lux with fixed iris lens. |
| Lens |
|
Standard
CS mount lens fitting. |
|
DC-Iris
vari-focal (zoom) lens 3.5–8.0mm eqv. to 25-55mm on a 35mm
camera. |
| |
Ideal
for outdoor monitoring (in outdoor housing). |
| Image |
|
Image frame rate:up to 30 (25) frames at 352x240 (352x288)
resolution. |
| |
Up
to 12 (10) frames at 704x480 (704x576) resolution. NTSC (PAL). |
|
JPEG
still images and Motion-JPEG video. |
|
High-speed
hardware-based image compression, generating high quality
JPEG images. |
|
5
levels of compression are available. The file size of a JPEG
compressed image depends on |
| |
the actual content of the image. Images containing a lot of
detail will generate larger files. Image quality is controlled
through the level of compression. High compression yields
smaller files at the expense of image quality, while low compression
results in larger files, but maintains image quality. The
table below shows average file sizes, derived from real life
tests. |
| |
 |
|
Configurable
maximum bandwidth limitation to prevent network saturation.
|
| |
30 (25) frames/s typically requires about 1.5 Mbit/s. |
| General
I/O |
|
Accepts
Dial-in and Dial-out access via external modem (modem not
included). |
|
Event
triggered remote image storage via e-mail and F TP. |
| System
Requirements |
|
Compatible
with operating systems such as Windows 98, Windows 2000, Windows
XP, |
| |
Windows
NT, Windows ME, Linux, Mac OS and Mac OS X. |
|
Internet
Explorer 4.x, 5.x, 6.x or Netscape Navigator 4.x. |
|
Non-network,
i.e. modem installation requires Windows PC with Dial-up networking. |
| Supported
Protocols |
|
TCP/IP,
HTTP, FTP, SMTP, ARP, BOOTP, PPP, CHAP, PAP, DHCP and more. |
| Security |
|
Password/username
protection for restricted camera access |
| Hardware |
|
ARTPEC-1
compression chip. |
|
ETRAX
100 processor, 32 bit RISC, 100 MIPS CPU for high performance. |
|
RAM:
16 MB. |
|
FLASH
PROM: 4MB. |
| Firmware
Updates |
|
Flash memory for simple upgrades and storage of user designed
html files. |
| Connections |
|
RJ
45twisted pair direct network connection for 100BaseTX Fast
and 10BaseT Ethernet. |
|
RS-232
port for modem connection or control of RS232 devices. |
|
Input/Output
connector to trigger the camera on external events, |
| |
e.g. a door sensor with a solenoid. |
|
DC-Iris
lens connector. |
|
Control
button for factory defaults. |
| Power
Supply |
|
External
power supply connector 9-15V AC, min 10VA or 9-15V DC, min
8W. |
| Operating
Environment |
|
Requires
proper environmental housing for outdoor use. |
|
Temp:
5-50°C (40-122°F) |
|
Humidity:
20-80 % RHG, non-condensing. |
|
The
DC-Iris lens must be used and correctly configured for use
in environments where |
| |
strong light conditions prevail. Avoid aiming the camera directly
towards extremely bright objects such as the sun, as this
may damage the CCD image sensor. |
| Dimensions
and Weight |
|
Height:
57 mm (2.24") |
|
Width:
86 mm (3.39") |
|
Length:
138 + 45 mm (lens) (5.43" + 1.78") |
|
Weight: 250 g (excl. power supply and tripod) |
| Approvals |
| EMC:
|
FCC
Class A, Part 15 subpart B |
| CE: |
EN55022
Class B, EN55024 |
| Safety: |
EN60950,
UL, CSA |
|
Accessories Included |
|
DC-Iris variable focal length lens (3.5–8.0mm). |
|
Camera mini-tripod, using standard 1/4" nut. |
|
Null
modem cable for modem installation. |
|
Power
cord extension cable. |
|
Power
supply: 12V AC, 9.6 VA. |
|
I/O connectors. |
|
Rugged
metal tripod. |
|
|
|
|
