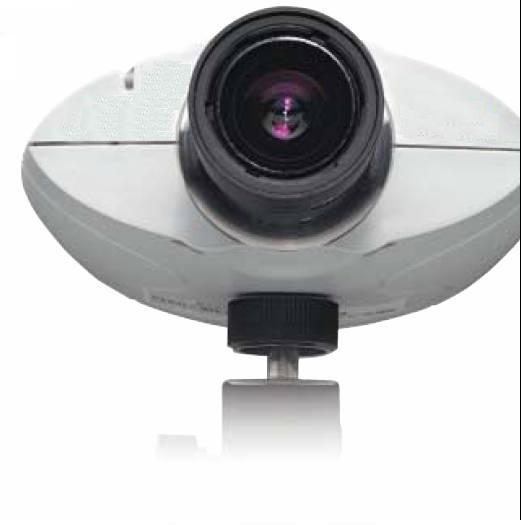

NC2110 Network Camera
Your virtual eye

NC2110 Network Camera is an affordable tool for high-quality imaging applications using the Web. NC2110 enables publishing of promotional live video over the Internet, broadcasting of live events, remote monitoring of the office, and much more. It connects as a standalone unit directly to a network, or modem, to generate images that can be viewed within a standard Web browser X from anywhere.

Unlike a simple Webcam, it includes a built-in Web server and plugs directly to a network, or modem Vwith no PC or additional software required. Complete with a quality lens, it can be used indoors, or installed into a weatherproof enclosure for outdoor usage.

Features
High-quality images - up to 15 frames/sec
In- and outdoor use
Built-in Web Server and network connection
View live images from any network connected PC
Audio functionality available in combination with AM2191 Audio Module

Technical Specifications - NC2110 Network Camera

General
Built-in web server and network interface.
  No PC needed for operation.
Linux-based operating system.
Installation
Quick and easy installation:
  Simply connect to your network and assign an IP-address.
Camera
Digital, 24-bit color.
Image sensor
1/4 inch Sony progressive scan RGB CCD.
HxV: 659x494.
Resolution (pixels): 640x480
Exposure
Backlight compensation.
Automatic AGC.
White Balance: Automatic and Preset: Fixed Indoor, Fixed Fluorescent, Fixed Outdoor, Hold.
Exposure times: 1-1/30,000s.
Sensitivity
Maximum Illumination: 200,000 Lux.
Minimum Illumination: 1 Lux.
Lens
Standard Tamron CS mount.
3.5-8mm lens.
F 1.4 vari-focal zoom lens with manual iris (equivalent to 30-80 mm on a standard 35mm
camera).
Image frame rate: up to 15 frames/sec.
JPEG still images and Motion-JPEG video.
High-speed hardware-based image compression, generating high quality JPEG images.
4 levels of compression are available. The file size of a JPEG compressed image depends on
  the actual content of the image. Images containing a lot of detail will generate larger files. Image quality is controlled through the level of compression. High compression yields smaller files at the expense of image quality, while low compression results in larger files, but maintains image quality. The table below shows average file sizes, derived from real life tests.

Bandwidth control prevents data saturation on the network.15 frames/sec. typically requires
  about 1.5 Mbit/sec.
Light Condition Adaptive Frame Rate
General I/O
Accepts Dial-in and Dial-out access via external modem (modem not included).
Event triggered remote image storage via e-mail and F TP.
System Requirements
Compatible with operating systems such as Windows 98, Windows 2000, Windows XP,
  Windows NT, Windows ME, Linux, Mac OS and Mac OS X.
Internet Explorer 4.x, 5.x, 6.x or Netscape Navigator 4.x.
Non-network, i.e. modem installation requires Windows PC with Dial-up networking.
Supported Protocols
TCP/IP, HTTP, FTP, SMTP, ARP, BOOTP, PPP, CHAP, PAP, DHCP and more.
Security
Password/username protection for restricted camera access
Hardware
ETRAX 100 LX, 32 bit RISC, 100 MIPS CPU for high performance.
RAM: 8 MB.
FLASH PROM: 2 MB.
Hidden push-key for focus and factory defaults.
Firmware Updates
Flash memory for simple upgrades
Connections
RJ 45 Twisted Pair cable, 10/100 MBit Ethernet network connection.
Modem connection RS-232 modem connector for dial-up use. Supports most V90 modems.
Input/Output connector to trigger the camera on external events.
Power Supply
External power supply: 12V AC (included). Power consumption max 7W.
Operating Environment
Requires proper environmental housing for outdoor use.
Temp: 5-40°C (41-104°F)
Humidity: 20-80 % RHG, non-condensing.
The manual iris lens must be used and correctly configured for use in environments where
  strong light conditions prevail. Avoid aiming the camera directly towards extremely bright objects such as the sun, as this may damage the CCD image sensor.
Dimensions and Weight
Height: 41 mm (1.6")
Width: 102 mm (4.0")
Length: 175 mm (6.9")
Weight: 260 g (0.6 pounds) (excl. power supply and tripod)
Approvals
EMC:  FCC Class A, Part 15 subpart B
CE: EN55022 Class B, EN55024
Safety: EN60950
  UL
  CSA
Accessories Included
Null modem cable
Power supply: 12V AC, 9.6 VA
Power cord extension cable
I/O connectors.
Rugged metal tripod.
