Network
Video Solution
VS250S
MPEG-2 Video Server
DVD-quality video
over networks

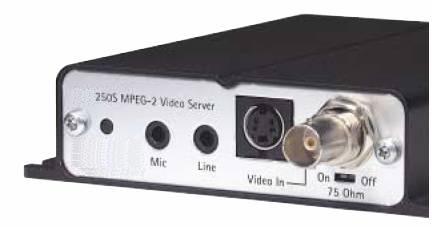

VS250S
MPEG-2 Video Server is a cost-effective and independent system
for streaming DVD-quality video with synchronized stereo sound
across networks. It includes an embedded Web server, and plugs
directly to IP networks.
Combining
real-time MPEG-2 hardware compression and transmission with full-resolution
video, the VS250S is capable of data rates up to 24 Mbps and delivers
full frame rate video at up to 30 frames per second. Complete
with pre-alarm video buffer, it is the ideal high performance
system for any professional security application that demands
bandwidth-efficient network video.
 |
|
|
Features |
 |
Live
MPEG-2 video over |
|
networks |
 |
High-resolution
video at full- |
|
motion
speed |
 |
Cost-efficient.
Bandwidth-efficient |
 |
Remote
video storage using FTP |
 |
E-mail
alarm notification |
 |
Support
for Pan/Tilt/Zoom |
|
cameras |
|
|
|
|
|
|
|
Technical
Specifications - VS250S Video Server |
|
|
System
Requirements |
 |
 |
VS250S
MPEG-2 Video Server uses the standard |
|
Internet TCP/IP suite of protocols and can be used with high
performance PC's running Windows 2000® or Windows XP® |
Minimum
client PC requirements |
CPU |
 |
Pentium
III 500 Mhz or higher, any AMD Athlon |
Memory |
 |
128
MB RAM |
 |
AGP
card with Direct Draw support and 16 Mb video memory* |
Sound
Card |
 |
PCI-based |
Software |
 |
Internet
Explorer 5.5, Mediaplayer 7 and Direct-X 8.1 or higher |
 |
Three
simultaneous clients supported |
* |
32/64
Mb recommended for high resolutions/color depths |
Installation |
 |
RJ
45 network connector |
 |
Installs
directly to NTSC or PAL video camera or other Video source
using BNC or Y/C |
|
(S-VHS)
connector |
 |
Power
supply PS-K |
Management |
 |
Remote
configuration and status using Web-based tools |
Security |
 |
User
level password protection |
 |
IP
Address filtering |
Video/Audio
Compression |
 |
MPEG-2.
User controlled bandwidth utilization control |
 |
Bit
rate configurable: 0.25-8 Mbit/s per client |
 |
Available
resolutions: 720x576, 720x480, 352x288, 352x240 pixels |
 |
16
bits stereo sound |
 |
Video
Inputs |
 |
1
BNC composite video input with 75 Ohm termination/Hi Z |
 |
Y/C
(S-VHS) Input |
 |
NTSC
or PAL Configurable |
Audio
Inputs |
 |
Stereo
microphone input |
|
Low
sens. Max: -18.1 dBu (270 mVpp)
High sens. Max: -39.0 dBu (25 mVpp) |
 |
Line
input Max: +2.7 dBu (3.0 Vpp) |
Networking |
 |
10baseT
Ethernet or 100baseTX Fast Ethernet, TCP/IP, HTTP, FTP, SMTP,
NTP, ARP, |
|
DHCP, BOOTP |
General
I/0 |
 |
Two
Terminal Block connectors providing four digital alarm inputs
and a single transistor |
|
output |
 |
Event-triggered
actions for remote video storage via File Transfer Protocol
(FTP) |
 |
E-mail
notification of events (SMTP) |
 |
Pre-alarm
video storage |
Serial
Connectors |
 |
One
9 pin D-SUB RS-232 max 115 kbit/s |
 |
One
RS-485/422 transceiver max 38.4 kbit/s, half duplex |
Pan/Tilt/Zoom |
 |
PTZ
support for remote camera control. Currently supported units
and protocols include: |
|
BT
Trippy, Canon VC-C3, VC-C4, Daiwa, Diamond SmartScan III,
Ernitech ICU 51PA, Kalatel, Lilin, Panasonic, Pelco-D, Sony
EVIG20/21, EVI-D30/31, Surveyor, VCL, Videmech (UOCP), Videor,
and Videotronic.
Future support for other PTZ units will be added. |
Hardware |
 |
MPEG-2
compression chip |
 |
ETRAX
100 LX, 32 bit RISC, 100 MIPS CPU |
 |
16
MB RAM |
 |
4
MB FLASH memory |
Power |
|
External
power supply 9V DC, 9W PS-K, included |
 |
Alternative
input voltage 7-20V DC, min 5W |
Software |
 |
No
extra software needed. Direct Show filters and 3 Viewer (decoder)
licenses included |
Firmware
Updates |
 |
Flash memory for simple upgrades |
Operating
Environment |
 |
Temp:
5-50°C (40-125°F) |
 |
Humidity:
20-80 % RHG |
Dimensions
and Weight |
 |
Height:
27 mm (1.1") |
 |
Width:
112 mm (4.4") |
 |
Length:
133 mm (5.2") |
 |
Weight: 320 g (0.7 lb.) |
Approvals |
 |
EN
55022:1998 (CISPR 22:1997), Class B - Emission, Europe |
 |
EN
55024:1998 - Immunity, Europe (using line input) |
 |
EN
61000-3-2:2000 - Power, Harmonic current emission |
 |
EN
61000-3-3:1995+A1-Power, Flicker and inrush current |
 |
FCC
part 15, Subpart B, class B demonstrated by compliance with
EN 55022 (CISPR 22) |
 |
C-Tick
AS/NZS 3548 - Australia |
 |
Safety:
EN 60950 |
 |
Safety:
UL, CSA (power supply only) |

|
|
|
|
