 Network
Video Solution
VS2411
Video Server
Digitizing your
analog world
VS2411
video server offers a generic stream of video from a remote analog
video source, a common function of all video
servers.

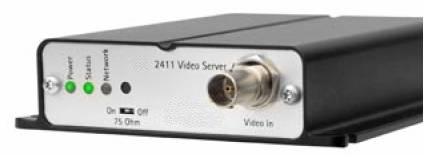

VS2411
is an entry-level single channel video server designed for professional
IP-Surveillance systems. This high performance video server is
ideal as an integrated part of a large system, as well as for
browser-based single camera viewing. It delivers video streams
at up to 30 frames/second using Motion-JPEG. Three different image
resolution alternatives and five user selectable compression levels
provide flexibility to meet various demands.
VS2411
is a compact, comprehensive single-box solution that digitizes
and compresses an analog video signal and makes it available to
network users, at a very attractive pricing.
 |
|
| |
| Features |
 |
A
compact solution for transmission of |
| |
video
over distance |
|
Live
video and remote monitoring |
| |
– with standard IP-networks |
|
High
quality Motion-JPEG images |
| |
–
at up to 30 frames/second |
|
Built-in
Web Server |
|
No
extra accessories or software |
| |
needed |
| |
|
| |
|
| |
|
|
| Technical
Specifications - VS2411 Video Server |
| |
|
| General |
 |
 |
Use
as a standalone system or added on to existing |
| |
CCTV
systems |
|
Remote
configuration and status using Web based |
| |
tools |
| System
Requirements |
| The
following specification applies to the use of
browser-based viewing. When using application software, please
refer to the specifications provided with the software. |
|
Operating
systems: Windows 95*, 98, NT4, 2000 and XP, Linux*, Unix*,
Mac OS*, |
| |
Mac OS X* |
|
Browsers:
Internet Explorer 5.x and higher, Netscape 4.7 and 7.x, Mozilla*,
Opera* |
|
Hardware:
Meeting the specification for selected operating system and
browser |
| * |
Limitations
in functionality |
|
RJ45:
10Base-T/100Base-TX Ethernet networks |
| Video
Inputs |
|
VS2411 has a single BNC composite video input with 75/Hi Z
termination |
| Power |
| 3
alternative power sources: |
|
External
power supply 9 V DC, 9W (PS-K, included) |
| Video |
|
Color & Black/White |
|
frame rate up to 30 frames/second |
|
Compression
Motion-JPEG |
|
5
compression levels for each resolution mode |
|
Supported resolutions: |
|
|
-
QCIF 176x112 (NTSC), 176x144 (PAL)
- CIF 352x240 (NTSC), 352x288 (PAL)
- 4CIF 704x480 (NTSC), 704x576 (PAL) |
|
Overlay: |
| |
-
Time & Date
- User defined text |
|
Network
bandwidth usage limitation control |
| The file size of a JPEG image
depends on factors such as selected resolution, compression
level and the actual content of the image. An average JPEG
image will normally be 5KB - 50KB. |
| Security |
|
Multi
user level password protection for restricted camera access |
| Firmware
Updates |
|
Flash memory allows firmware updates over the network, using
FTP over TCP/IP. |
| Customer
Applications |
|
Compliance
with the HTTP
API for applications and systems integration |
|
Support
for shell scripting to allow user defined applications |
|
Up
to 0.5 MB available for storage of customer Web pages |
|
Full
support in Camera
Explorer and Camera
Recorder |
| Operating
Conditions |
|
Temp:
5-50°C (40-125°F) |
|
Humidity:
20-80 % RHG |
| Dimensions
and Weight |
|
Height:
28 mm (1.10") |
|
Width:
111 mm (4.37") |
|
Length:
110 mm (4.33") |
|
Weight: 300 g (0.66 lb.) (excluding power supply) |
| Approvals |
| EMC:
|
FCC
Class A |
| |
EN55022/1994 |
| |
EN55024/1998 |
| Safety: |
EN60950 |
| |
UL |
| |
CSA |
| Included Accessories |
|
Administration
manual |
|
Power
supply |
|
|
|
|
