 Network
Video Solution
Power

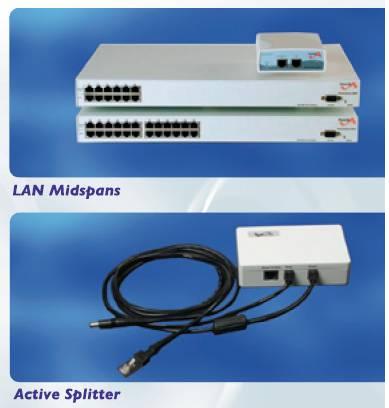

over LAN Midspans & Active Splitter
Network
video from anywhere...
without the need for power outlets
 If
you're looking for a simpler and quicker way to install and relocate
your network surveillance cameras - without the services of an
electrician - you need to look no further than Power over LAN
Midspans and Active Splitters.
By
utilizing the wires that normally go unused in standard 'Cat 5'
network cables, Power over LAN Midspan and Active Splitter products
feed power directly to network
video products over distances of up to 328ft/100m.

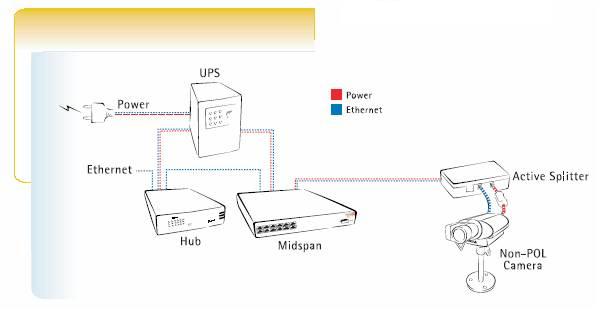

What's
more, by connecting LAN Midspans to uninterrupted power supplies
devices, your network surveillance system will even continue to
operate in the event of a power failure - making it the perfect
solution for powering mission-critical systems.
 |
Compatible
with most network
cameras and video servers. |
|
Fully
compliant to 802.3af (Excluding the Active Splitter). |
|
Facilitates
remote monitoring and surveillance in places where there are
no power |
| |
outlets. |
|
Convenient and cost-effective alternative to installing new
power outlets and power |
| |
cabling
for video applications. |
|
Surveillance
cameras can now be installed quickly and easily by IT staff
and/or system |
| |
resellers. |
| Features |
| |
| Remote
Power Feeding |
| The
1, 6 and 12-port Power over LAN Midspans power network video
products up to 328 feet or 100 m away by utilizing existing
Ethernet or Fast Ethernet (category 5 unshielded or shielded
twisted-pair cabling) for power transfer. |
| |
| Active
Splitter |
| The
Active Splitter is installed where a device is not compatible
with the Power over LAN Midspans. This splitter separates
the DC voltage and the Ethernet data, into two separate outputs
terminating at a power port and a RJ-45 jack. |
| |
| Scalable
Solution |
| Multiple
Midspans can be mounted in a wiring cabinet to support additional
terminals, resulting in a simple, cost-effective method for
expanding the network, as requirements evolve. |
| |
| Centralized
Power Distribution |
| Deploying
Power over LAN in conjunction with a central UPS provides
a cost-effective way to distribute back-up power and ensures
uninterrupted operation of Network Surveillance Cameras during
electrical power failures. |
| |
| Smart
Ethernet Wiring |
| The
1, 6 and 12-port Power over LAN Midspans directly transfer
data transmissions originating from Ethernet terminals over
pairs 1/2 and 3/6. The Power over LAN Midspans act as a normal
patch panel for Ethernet connections, ensure continuous and
reliable performance. Power is provided only over unused Ethernet
pairs 4/5 and 7/8. |
| |
| Standard
Compliance |
| The
1, 6 and 12-port Power over LAN Midspans are fully compatible
with IEEE 802.3 standard (when no inline power is supplied)
and with IEEE802.3af, DTE Power via Media Dependent Interface
(MDI). |
| |
| Advanced
Auto-Sensing Algorithm |
| The
1, 6 and 12-port Power over LAN Midspans feature a standard
IEEE 802.3af auto-sensing algorithm, as well as backward compatibility
to the pre-standard algorithm. This mechanics automatically
detects power-ready terminals and supplies inline power. The
per port, sophisticated power control and monitoring circuit
ensures continuous proper operation of devices, such as ordinary
Network Interface Cards (NICs) that do not expect power on
their Ethernet connection. |
| |
| Easy
to Use |
| The
1, 6 and 12-port Power over LAN Midspans are plug-and-play
products. Once turned on, they automatically detect all Power
over LAN Ethernet terminals and supply inline power. All port
interfaces are located on the front panel for easy access. |
| |
| Compact
Size |
| The
1, 6 and 12-port Power over LAN Midspans are standard 19-inch,
1U high to allow for easy rack mounting, while occupying minimal
space in the wiring closet. The 1-port Power over LAN Midspan
is only available as a wall or shelf-mounted unit. |
| |
| Concise
LED Displays |
| Real-time
network monitoring through the front panel, includes a bi-color
LED per port, indicating normal, overload or short-circuit
conditions. Additional LED indicators are included for main
power supply and internal self-test monitoring. |
| |
|
|
| Technical
Specifications - 6 and 12-port Power over LAN Midspan |
| |
|
| No.
of Ports |
|
 |
12/6 |
|
| Data
Rates |
|
|
10/100
Mbps |
|
|
Power over LAN Output Specification |
|
Pin
Assignment and Polarity: 4/5 (RTN.), 7/8 (-V) |
|
|
Output
Power Voltage: -48V |
|
User
Port Power: 15.4W minimum |
|
Aggregate
Power: 12-port: 200W; 6-port: 100W |
| Input
Power Requirements |
|
AC
Input Voltage: 88 to 264V AC |
|
AC
Frequency: 47 to 63Hz |
|
AC
Input Current: 3.5A at 110V AC; 1.8A at 240V AC |
|
DC
Input Current: 10A at 48V |
|
Volt
Amperes Rating: 0.48KVA (-48V); 0.30KVA (110V AC) |
| Dimensions |
|
1.75"
(H) x 17.0" (W) x 11.9" (D) |
|
44
mm (H) x 433 mm (W) x 302 mm (D) |
| Weight |
|
8.8
lbs. (4 Kg) |
| Management |
|
Local
LED Display |
| Indicators |
|
System
Indicator: AC Power (Green/Orange); DC Power (Green/Orange) |
|
User
Indicator: Channel Power (Green/Orange) |
|
Shielded
RJ-45, EIA 568A and 568B |
|
DB-9, Female (Management) |
| Thermal
Rating |
|
285
BTU |
| Environmental
Conditions |
|
Operating
Ambient Temperature: 32° to 104°F (0° to 40°C) |
|
Operating
Humidity: Maximum 90%, Non-condensing |
|
Storage
Temperature: -4° to 167°F (-20° to 75°C) |
|
Storage
Humidity: Maximum 95%, Non-condensing |
|
Operating
Altitude: -1,000 to 10,000 ft. (-304.8 to 3048 m) |
| Regulatory
Compliance |
|
CE
Compliance |
| Electromagnetic
Emission and Immunity |
|
FCC
Part 15 Class B |
|
EN55022
Class B (Emission) |
|
EN55082-1
(Immunity) |
| Safety
Approvals |
|
UL
1950 |
|
CSA
C22.2 No. 950 |
|
EN
60950 |
|
TUV
EN 60950 |
| |
|
|
| |
| Technical
Specifications - 1-port Power over LAN Midspan |
| |
|
| No.
of Ports |
|
|
1 |
|
| Data
Rates |
|
|
10/100
Mbps |
|
|
Power over LAN Output Specification |
|
Pin
Assignment and Polarity: 4/5 (RTN.), 7/8 (-V) |
|
|
Output
Power Voltage: -48V |
|
User
Port Power: 15.4W minimum |
| Input
Power Requirements |
|
AC
Input Voltage: 90 to 264V AC |
|
AC
Frequency: 47 to 63Hz |
|
AC
Input Current: 0.3A at 110V AC; 0.15A at 240V AC |
| Dimensions |
|
1.75"
(H) x 4.17" (W) x 5.5" (D) |
|
44
mm (H) x 110 mm (W) x 140 mm (D) |
| Weight |
|
1
lbs. (0.45 Kg) |
| Indicators |
|
System
Indicator: AC Power (Green/Orange) |
|
User
Indicator: Channel Power (Green/Orange) |
| Connectors |
|
Shielded
RJ-45, EIA 568A and 568B |
| Thermal
Rating |
|
127.5
BTU |
| Environmental
Conditions |
|
Operating
Ambient Temperature: 32° to 104°F (0° to 40°C) |
|
Operating
Humidity: Maximum 90%, Non-condensing |
|
Storage
Temperature: -4° to 167°F (-20° to 75°C) |
|
Storage
Humidity: Maximum 95%, Non-condensing |
|
Operating
Altitude: -1,000 to 10,000 ft. (-304.8 to 3048 m) |
| Regulatory
Compliance |
|
CE
Compliance |
| Electromagnetic
Emission and Immunity |
|
FCC
Part 15 Class B |
|
EN55022
Class B (Emission) |
|
EN55082-1
(Immunity) |
| Safety
Approvals |
|
UL
1950 |
|
CSA
C22.2 No. 950 |
|
EN
60950 |
|
GS
EN 60950 |
|
Shielded
RJ-45, EIA 568A and 568B |
| Thermal
Rating |
|
127.5
BTU |
| Environmental
Conditions |
|
Operating
Ambient Temperature: 32° to 104°F (0° to 40°C) |
|
Operating
Humidity: Maximum 90%, Non-condensing |
|
Storage
Temperature: -4° to 167°F (-20° to 75°C) |
|
Storage
Humidity: Maximum 95%, Non-condensing |
|
Operating
Altitude: -1,000 to 10,000 ft. (-304.8 to 3048 m) |
| Regulatory
Compliance |
|
CE
Compliance |
| Electromagnetic
Emission and Immunity |
|
FCC
Part 15 Class B |
|
EN55022
Class B (Emission) |
|
EN55082-1
(Immunity) |
| Safety
Approvals |
|
UL
1950 |
|
CSA
C22.2 No. 950 |
|
EN
60950 |
|
GS
EN 60950 |
| |
|
|
| |
| Technical
Specifications - Power over LAN Active Splitter |
| |
|
|
Input Voltage |
|
48V
Nominal |
| Output
Voltage / Max. Output Current |
|
+12V
/ 0.9A |
| Dimensions |
|
1.26"
(H) x 5" (W) x 3" (D) |
|
32
mm (H) x 127 mm (W) x 76 mm (D) |
| Weight |
|
175
g |
| Connectors |
|
Shielded
RJ-45, EIA 568A and 568B Circular connector type HRS RP34 |
| Environmental
Conditions |
|
Operating
Ambient Temperature: 32° to 104°F (0° to 40°C) |
|
Operating
Humidity: Maximum 90%, Non-condensing |
|
Storage
Temperature: -13° to 185°F (-25° to 85°C) |
|
Storage
Humidity: Maximum 95%, Non-condensing |
|
Operating
Altitude: -1,000 to 10,000 ft. (-304.8 to 3048 m) |
| Regulatory
Compliance |
|
CE
Compliance |
| Electromagnetic
Compatibility |
|
US:
FCC Part 15 Class B |
|
Canada:
CSA C22.2, Class B |
|
Europe:
89/336/EEC, EMC Directive, including CE Mark |
|
Europe:
EN55022 Class B (Emissions); EN55082-1 (Immunity) |
|
International: CISPR 22, Class B |
| Safety
Approvals |
|
US:
AUL 1950 |
|
Canada:
CSA C22.2 No. 950 |
|
Europe:
73/23/LVD, CE Mark |
|
Europe:
EN60950, TUV EN60950 |
|
International:
IEC 950, CB Certified |
|
