Network Video Solution

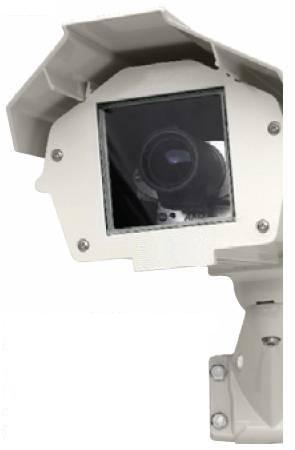

OH290A Outdoor Housing for Network Cameras
Camera protection you can rely upon … come rain, shine or grime!

If you're looking to install network cameras outdoors, you'll need to provide them with the right protection.

These IP66 classified housings offer a convenient, durable and tailor-made solution for mounting network cameras outdoors and within other harsh environments.

Made with a solid extruded aluminum casing, these outdoor camera enclosures provide robust protection for tamper-proofing your cameras, and shields them against dust and heavy rain. They even incorporate a temperature controlled heating system that ensures continued camera operation in cold weather conditions.

Take your surveillance outdoors with tailor-made outdoor enclosures for network cameras.

Features
	Tailor-made enclosure solution for the NC2120 and NC2420 Network Cameras
	Weather protected from -20°C to +42°C
	Weatherproof to IP66
	Supplied with integral tamper-proof mounting bracket

Technical Specifications - OH290A Outdoor Housing
General
	Outdoor temperature controlled camera housing in
	extruded aluminum
	Integral tamper proof wall bracket
	Weatherproof to IP66
	Tailor-made for the NC2120 and NC2420 Network Cameras
	Comes complete with sunshield, internal power supply and
	mounting fixings
Internal Power Supply
	Input voltage: 100 – 240 VAC (50HZ/60HZ)
	Input current: 0.55A at 100 VAC / 0.28A at 240VAC

	Minimum power requirement: 68VA
	Output voltage: 12VDC
	Output current: 1A

Operating Temperature
	Ambient operating temperature: -20°C to +42°C (-4°F to +108°F)*
	Maximum ambient operating temperature for housing mounted in direct sunlight: +35°C (95°F)
Dimensions and Weight
	Internal dimensions (H x W x L): 93 x 130 x 300 mm (3.66 x 5.12 x 11.81 Inches)
	External dimensions (H x W x L): 410 x 180 x 210 mm (16.2 x 7.1 x 83 Inches)
	Weight: 3.2 Kg (7 lb)
Materials Specification
	Main body, bracket and sunshield: Aluminum
	Fastenings, wall fixings and locking clips: Stainless steel
	Window: Glass
	Camera mounting board: Bakelite
	Gaskets: Polyethylene and Neoprene
	Finish: Polyester powder coating RAL 9002 30% gloss white/grey
Approvals
	IP66
	CE: EN60950
*when used together with the NC2120 and NC2420
