V.92 USB Modem

Benefits

	Easiest modem to install
	Hot-swap with other USB devices anytime
	High-speed performance
	Global approvals

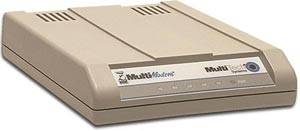

The MultiModemUSB desktop modem provides high-speed data transfers, fax capabilities and easy installation with a USB interface. Just plug it in and it's installed. The MultiModemUSB is approved for use in many countries around the world. This means one model can ship virtually anywhere.

Features

	V.92/56K download speeds and 48K upload speeds when connecting with V.92 servers
	Class 1.0 and Class 2.1 faxing at speeds to V.34/33.6K bps (Super G3)
	Quick connect feature can cut the time required for a dial-up modem to "handshake"
	to an ISP or other connection in half
	V.44 compression improves data throughput rates
	Error Correction Mode (ECM) provides fast and reliable fax transmissions
	Easiest installation of any modem on the market with Plug-and-Play operation under
	Windows 98/Me/2000/XP
	U.S. Caller ID reporting
	Remote configuration for centralized setup and management
	Global approvals in many countries for worldwide use
	Country localization kits available
	Hot-swappable with other USB devices without ever restarting or reconfiguring your PC
	USB interface provides 12M bps serial connection
	Self-resetting lightning protection
	Small footprint and stackable design
	Stores two phone numbers
	Multi-language data/fax software for Windows
	Flash memory for easy updates

Highlights

Increased Upload Speeds. With the V.92 MultiModemUSB, you can achieve an upload speed of 48K bps (30% increase over V.90 modems). This higher upstream speed reduces data transfer time for large e-mails with attachments and for ftp site uploads, as well as improves operation for interactive applications.

Quick Connect. The V.92 MultiModemUSB quick connect feature reduces the dial-up connection time by as much as 50% for a modem to "handshake" to an ISP or other connection.

V.44 Compression. V.44 is a new data compression standard that will improve the current V.42bis data compression anywhere from 20 to 60 percent, up to as much as 200 percent for certain types of highly compressible data. The compression technique, used by the V.92 MultiModemUSB, enables data throughput rates of higher than 300K bps - much faster than today's typical rates of 150 - 200K bps. For users, it means that your Web browsing will be much faster.

Enhanced Fax Features. The V.92 MultiModemUSB supports V.34 fax and Error Correction Mode providing significant performance and reliability enhancements over previous fax standards. V.34 sends and receives faxes at 33.6K, more than double the speed of the V.17/14.4K fax standard. Error Correction Mode adds reliablility while increasing performance of fax transmissions. Together these enhancements increase the performance of the MultiModemUSB to levels previously only found in more expensive dedicated fax boards and machines.

Global Approvals. With the V.92 MultiModemUSB, you need just one modem for worldwide use. This model has approvals in many countries so you can ship one SKU (stock unit) virtually anywhere in the world. Localization kits are available for country-specific telco adapters.

Model
MT5634ZBA-USB-V92 - V.92 Data/Fax World Modem
Rates
Data: V.92/56K downloads and 48K upload speeds from V.92 servers
Fax: 33.6K/14.4K bps
Standards
Data: V.92, V.90, enhanced V.34 & below
Error Correction: V.42
Data Compression: MNP®Class 5; V.42bis
Fax: V.34, Class 2.1 and Class 1.0, V.17, Group 3, Class 1 & Class 2, Error Correction Mode (ECM)
Video: V.80
Connectors
2 RJ-11s & 1 USB type A
Cables
1 USB cable & 1 RJ-11 cable
Operation
Line Type: Dial-up
USB Port: 12M bps
Operating Systems Support
Windows 98/Me/2000/XP
Physical Description
4.3" w x 1.0" h x 5.7" d; 8 oz
(10.9 cm x 2.5 cm x 14.5 cm; 227g)
Operating Environment
Operating Temperature: 32 - 120°F (0 - 50°C)
Humidity Range: 20-90% noncondensing
Certifications
CE Mark
EMC: EN55024, FCC Part 15 Class B
Safety: cUL, EN60950, UL1950
Telecom: CS03, FCC Part 68, TBR21
Other countries also included
