Mission-Critical V.92 Corporate Modem



Benefits

Synchronous or asynchronous support
Dial-up or leased line operation
LCD panel for configuration and diagnostics
Global approvals

The MultiModemII corporate modem provides V.92/56K data and 14.4K bps fax communications, a robust smart feature set and an industrial chassis for rock-solid reliability making it the ideal choice for the corporate modem market. In addition, it is approved for use in many countries around the world. This means one model can ship virtually anywhere.


Features

V.92/56K download speeds and 48K upload speeds when connecting with V.92 servers
Class 1 and Class 2 faxing at 14.4K
Quick connect feature can cut the time required for a dial-up modem to "handshake"
  to an ISP or other connection in half
V.44 compression improves data throughput rates
LCD panel for easy configuration and diagnostics
Synchronous and asynchronous support
Dial-up and 2-wire leased line support
4-wire leased line support and dial backup
Remote configuration for centralized setup and management
Pass-through and fixed callback security
Global approvals in many countries for worldwide use
U.S. Caller ID reporting
Four phone number storage for automatic or DTR dialing
Multi-language data/fax software for Windows
Flash memory for easy updates


Highlights

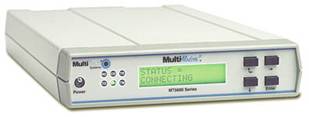

Easy Control. The V.92 MultiModemII offers quick and easy access to modem information. The front LCD panel provides status, configuration, and diagnostics. Plus, the V.92 model installs with fewer steps because its smarter preconfigured settings default to the most popular options MultiModemII users typically select.

Increased Upload Speeds. With the V.92 MultiModemII, you can achieve an upload speed of 48K bps (30% increase over V.90 modems). This higher upstream speed reduces data transfer time for large e-mails with attachments and for ftp site uploads, as well as improves operation for interactive applications.

Quick Connect. The V.92 MultiModemII quick connect feature can reduce the dial-up connection time by as much as 50% for a modem to "handshake" to an ISP or other connection.

V.44 Compression. V.44 is a new data compression standard that will improve the current V.42bis data compression anywhere from 20 to 60 percent, up to as much as 200 percent for certain types of highly compressible data. V.44 enables data throughput rates of higher than 300K bps - much faster than today's typical rates of 150 - 200K bps.

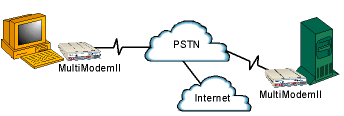

Backup Service. When your applications demand uninterrupted service, put a MultiModemII at each end for leased line operation with dial backup support. Connect each modem to a dial-up line and rest easy. If the primary modem connection goes down, the backup dial-up line can take over.

Callback Security. The MultiModemII provides password protection and helps reduce long distance charges for remote users requiring access to the central site LAN. The MultiModemII supports 30 "fixed" accounts. With "fixed" callback security, the MultiModemII stores a password and the remote user's phone number. Once the remote user enters their password, the central site's modem calls back using the number stored in its database.

Remote Configuration. Whether you provide connectivity for a sales office 2,000 miles away or worldwide e-business services to your clients, the MultiModemII lets you take care of configuration from a central site.

Global Approvals. With the MultiModemII, you need just one modem for worldwide use. This model has approvals in many countries so you can ship one SKU (stocking unit) virtually anywhere in the world. Localization kits are available for country-specific power cords, phone cords and telco adapters.


Specifications

Model
MT5600BA-V92-GB - V.92 Data/Fax World Modem
Rates
Data: V.92/56K downloads & 48K upload speeds from V.92 servers; V.90/56K downloads from V.90/K56flex™ servers; 33.6K bps transfers with other servers
Fax: 14.4K and below
Standards
Data: V.92, V.90 & enhanced V.34
Error Correction: V.42
Data Compression: V.44; V.42bis; MNP®Class 5
Fax: V.17, Group 3; Class 1 & Class 2
Connectors
Connectors: 1 DB-25F (RS-232C/D); 3 RJ-11s
Power
100-240v AC, 50/60 Hz
Physical Description
6.2" w x 1.4" h x 9.0" d; 2 lbs.
15.8 cm x 3.6 cm x 22.9 cm; 0.9 kg
Operating Environment
Temperature Range: 32 - 120°F (0-50°C)
Humidity Range: 25-85% noncondensing
Certifications
CE Mark
EMC: EN55024, FCC Part 15 Class B
Safety: cUL, EN60950, UL60950
Telecom: CS03, FCC Part 68, TBR21
