Highlights

Applications. combines firewall, e-mail anti-virus protection*, content filtering and Virtual Private Networking (VPN) in one box. It is a cost-effective, easy to manage solution that is ideal for the small to medium business looking to add one or all of the following applications to their network:

* Optional yearly subscription.

Firewall Security. As businesses move toward always-on broadband Internet connections, the network becomes more vulnerable to Internet hackers. provides network layer security utilizing Stateful Packet Inspection, the sophisticated firewall technology found in large enterprise firewalls, to protect the network against intruders and Denial of Service (DoS) attacks. It also uses Network Address Translation (NAT) to hide internal, non-routable IP addresses and allows internal hosts with unregistered IP addresses to function as Internet-reachable servers. In addition to network layer security, it provides application level security using SMTP, HTTP, DNS and SOCKS proxies. also utilizes filters to block specific Internet content to protect against viruses, dangerous ActiveX controls, Java, Javascript, and Cookies. An automatic update feature provides the highest level of security by automatically downloading and installing the latest system software and security patches protecting against any newly discovered hacker attacks with a single click.

E-Mail Anti-Virus Protection. Computer viruses are one of the leading security threats to Internet-connected networks. Users can unknowingly download and launch dangerous viruses that can damage data or cause computer crashes. Viruses can also be used as delivery mechanisms for hacking tools, compromising the security of the network, even if a firewall is installed. An optional email virus protection subscription utilizes a high-performance, ICSA-tested, anti-virus engine which checks both incoming and outgoing e-mail for viruses in real-time. Automatic anti-virus updates are downloaded at user-defined intervals to ensure protection is current. The e-mail anti-virus protection can be easily renewed on an annual basis.

Content Filtering. includes a one-year URL content filtering subscription. It utilizes SurfControl's content categorization list, the world's largest database of Internet content, which includes 5 million Web sites covering over 900 million Web pages. Daily updates of categorized sites are available for download. In addition, it includes URL access and deny reporting. The subscription can easily be renewed on an annual basis.

Secure VPN Connections. uses IPSec and PPTP industry standard protocols, data encryption, user authentication, and the Internet to provide high performance, secure VPN connections. For LAN-to-LAN connectivity, utilizes the IPSec protocol with strong 168-bit 3DES encryption using IKE and PSK key management. In addition, it provides very high performance with 15M bps (RF660VPN) of 3DES encryption throughput (3M bps with the RF600VPN). For Client-to-LAN connectivity, we provide optional IPSec client software. also supports remote users that want to use the PPTP VPN client built into the Windows operating system. This provides 40-bit or 128-bit encryption, user name and password authentication.

Branch Office VPN. The LAN-to-LAN VPN application sends network traffic over the branch office Internet connection instead of relying on dedicated leased line connections. This can save thousands of dollars in line costs and reduce overall hardware and management expenses.

Remote User VPN. The Client-to-LAN VPN application replaces traditional dial-in remote access by allowing a remote user to connect to the corporate LAN through a secure tunnel over the Internet. The advantage is that a remote user can make a local call to an Internet Service Provider, without sacrificing the company's security, as opposed to a long distance call to the corporate remote access server.

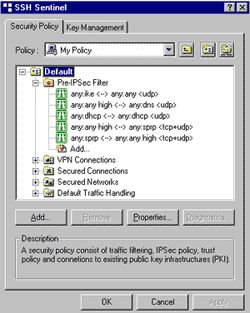

Optional VPN Client Software. provides an easy-to-use IPSec VPN client software that transparently secures Internet communications anytime, anywhere. VPN client software is ideal for business users who travel frequently or work from home providing secure remote access through the VPN gateway for applications such as remote access, file transfer, email, Web browsing, messaging or IP telephony. Encryption and authentication operations are completely transparent to the end user. In general, IPSec provides stronger encryption than PPTP resulting in better overall security.

User Authentication. To increase the level of security, user identity can be verified before access to Internet services is permitted. supports authentication at a local user database as well as at external user databases, like Windows 2000 or RADIUS server.

Plug-and-Play Security Appliance. gateway plugs in at the Internet connection of each office and provides three independent network interfaces (LAN, WAN and DMZ) that separate the protected office network from the Internet while providing an optional public network for hosting Web, e-mail or ftp servers. Each network interface is independently monitored and visually displayed on the front of the gateway.

Web Caching Server. To enhance performance, also provides web caching. By storing frequently visited web sites on a local drive, web surfing performance can be improved by as much as 50%.

Robust, Easy-to-Use Management. includes robust management support allowing a network administrator to securely manage the devices either through a web browser or at the command line. The browser-based option uses the HTTP or HTTPS protocol, also known as SSL (Secure Sockets Layer) to provide 128-bit encryption to secure the management session. The command line interface is accessible via SSH (Secure Shell) and supports SCP (Secure Copy).

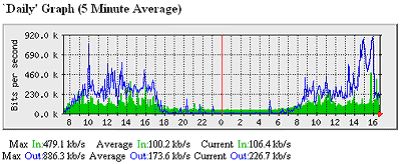

Reporting. also includes a suite of integrated monitoring and reporting tools that help administrators troubleshoot the Internet security system and report to management the usage of the Internet. This includes reporting on system uptime, hardware and network utilization. HTTP and SMTP proxy reports provide information about any actions needed to handle virus-infected e-mails. also disables and logs attempted port scans. In addition, it provides accounting reports and a self-monitor that sends an e-mail notification of system-level issues.

Automatic Dial Backup. The gateway provides a serial port that, when connected to a dial-up modem or ISDN terminal adaptor, can serve as a backup resource for Internet access and VPN tunneling if your cable or DSL service goes down. In addition to the serial port, the RF660VPN model includes a built-in modem.
