Network Video Solution

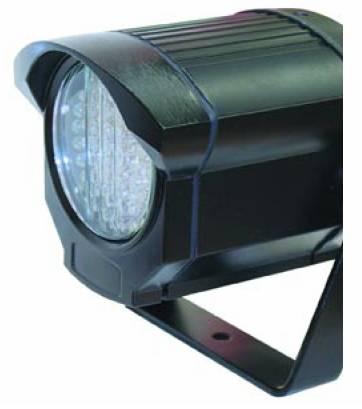

IR Illuminator
850nm (30°& 60°)
940nm (20°& 50°)
Invisible to the naked eye

Use the IR Illuminator in combination with the NC2420 Network Camera – IR Sensitive, and get good quality images around the clock, in low-light situations (and in complete darkness) without attracting attention.

The inherent low power consumption of the solid-state LEDs results in ultra long life time, and very low running cost of the system.

The high quality IR Illuminator can be used both indoors and outdoors, for both semi-covert and covert applications, and the adjustable power settings offer possibility to match the scene requirements.

Features
	Improve the image quality in low-light situations and in complete darkness
	Up to 98 feet/30 meters range with the NC2420 IR Sensitive
	Automatic Dawn/Dusk power on/power off.
	Semi-covert or completely covert models
	Ultra-long life-time (+ 5 years)

Technical Specifications - IR Illuminators
General
	Good image quality even in complete darkness
	when used with IR Sensitive Cameras.
	Automatic Dawn / Dusk power on / power off.
	Ultra long life (+5 years), high quality IR
	illuminator using solid state high efficiency
	LED's*.
	Versatile input voltage 12 to 24 V AC or DC.
	Low power consumption of the solid-state LED
	array means very low running cost over the
	life-time of the system.
	Adjustable power settings to match scene
	requirements.
	Can be used indoors or outdoors (requires a suitable outdoor power supply).
	Comes complete with suitable indoor only power supply.
*	Light Emitting Diode – a type of semi-conductor that emits light when current is passed
	through it.

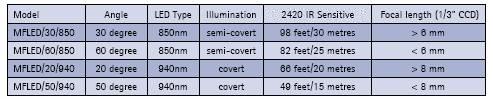

Selection Guide

Construction
	Robust aluminium casting/extrusion
	Color: Black
Connections
	External power supply connector
	Supplied with 6.6 feet (2 meters) connecting lead
Power
	12-24V AC or DC, min 13VA

Operating Environment
	86°F (30°C) ambient max on Hi power
	95°F (35°C) ambient max on Med power
	104°F (40°C) ambient max on Lo power
Dimensions and Weight
	Height: 3.54” (90 mm)
	Width: 3.54” (90 mm)
	Length: 5.31” (135 mm)
	Weight: 1.76 lb (0.8 kg)
Approvals
	CE: EN50081-1:1992, EN50130-4:1996, EN60730:2001
	EMC: FCC Class A CFR47 Part 15.107 & Part 15.109
	IP: IP66
Included Accessories
	Power supply: 12 V DC, 13 VA
