 Network
Video Solution
VS250S
MPEG-2 Video Server
DVD-quality video
over networks

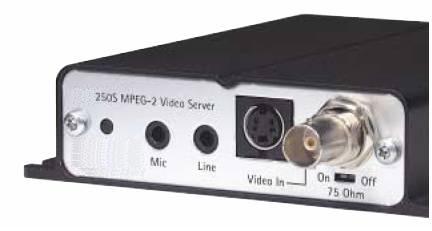

VS250S
MPEG-2 Video Server is a cost-effective and independent system
for streaming DVD-quality video with synchronized stereo sound
across networks. It includes an embedded Web server, and plugs
directly to IP networks.
Combining
real-time MPEG-2 hardware compression and transmission with full-resolution
video, the VS250S is capable of data rates up to 24 Mbps and delivers
full frame rate video at up to 30 frames per second. Complete
with pre-alarm video buffer, it is the ideal high performance
system for any professional security application that demands
bandwidth-efficient network video.
 |
|
| |
| Features |
 |
Live
MPEG-2 video over |
| |
networks |
|
High-resolution
video at full- |
| |
motion
speed |
|
Cost-efficient.
Bandwidth-efficient |
|
Remote
video storage using FTP |
|
E-mail
alarm notification |
|
Support
for Pan/Tilt/Zoom |
| |
cameras |
| |
|
| |
|
| |
|
|
| Technical
Specifications - VS250S Video Server |
| |
|
| System
Requirements |
 |
 |
VS250S
MPEG-2 Video Server uses the standard |
| |
Internet TCP/IP suite of protocols and can be used with high
performance PC's running Windows 2000® or Windows XP® |
| Minimum
client PC requirements |
| CPU |
|
Pentium
III 500 Mhz or higher, any AMD Athlon |
| Memory |
|
128
MB RAM |
|
AGP
card with Direct Draw support and 16 Mb video memory* |
| Sound
Card |
|
PCI-based |
| Software |
|
Internet
Explorer 5.5, Mediaplayer 7 and Direct-X 8.1 or higher |
|
Three
simultaneous clients supported |
| * |
32/64
Mb recommended for high resolutions/color depths |
| Installation |
|
RJ
45 network connector |
|
Installs
directly to NTSC or PAL video camera or other Video source
using BNC or Y/C |
| |
(S-VHS)
connector |
|
Power
supply PS-K |
| Management |
|
Remote
configuration and status using Web-based tools |
| Security |
|
User
level password protection |
|
IP
Address filtering |
| Video/Audio
Compression |
|
MPEG-2.
User controlled bandwidth utilization control |
|
Bit
rate configurable: 0.25-8 Mbit/s per client |
|
Available
resolutions: 720x576, 720x480, 352x288, 352x240 pixels |
|
16
bits stereo sound |
 |
| Video
Inputs |
|
1
BNC composite video input with 75 Ohm termination/Hi Z |
|
Y/C
(S-VHS) Input |
|
NTSC
or PAL Configurable |
| Audio
Inputs |
|
Stereo
microphone input |
| |
Low
sens. Max: -18.1 dBu (270 mVpp)
High sens. Max: -39.0 dBu (25 mVpp) |
|
Line
input Max: +2.7 dBu (3.0 Vpp) |
| Networking |
|
10baseT
Ethernet or 100baseTX Fast Ethernet, TCP/IP, HTTP, FTP, SMTP,
NTP, ARP, |
| |
DHCP, BOOTP |
| General
I/0 |
|
Two
Terminal Block connectors providing four digital alarm inputs
and a single transistor |
| |
output |
|
Event-triggered
actions for remote video storage via File Transfer Protocol
(FTP) |
|
E-mail
notification of events (SMTP) |
|
Pre-alarm
video storage |
| Serial
Connectors |
|
One
9 pin D-SUB RS-232 max 115 kbit/s |
|
One
RS-485/422 transceiver max 38.4 kbit/s, half duplex |
| Pan/Tilt/Zoom |
|
PTZ
support for remote camera control. Currently supported units
and protocols include: |
| |
BT
Trippy, Canon VC-C3, VC-C4, Daiwa, Diamond SmartScan III,
Ernitech ICU 51PA, Kalatel, Lilin, Panasonic, Pelco-D, Sony
EVIG20/21, EVI-D30/31, Surveyor, VCL, Videmech (UOCP), Videor,
and Videotronic.
Future support for other PTZ units will be added. |
| Hardware |
|
MPEG-2
compression chip |
|
ETRAX
100 LX, 32 bit RISC, 100 MIPS CPU |
|
16
MB RAM |
|
4
MB FLASH memory |
| Power |
|
|
External
power supply 9V DC, 9W PS-K, included |
|
Alternative
input voltage 7-20V DC, min 5W |
| Software |
|
No
extra software needed. Direct Show filters and 3 Viewer (decoder)
licenses included |
| Firmware
Updates |
|
Flash memory for simple upgrades |
| Operating
Environment |
|
Temp:
5-50°C (40-125°F) |
|
Humidity:
20-80 % RHG |
| Dimensions
and Weight |
|
Height:
27 mm (1.1") |
|
Width:
112 mm (4.4") |
|
Length:
133 mm (5.2") |
|
Weight: 320 g (0.7 lb.) |
| Approvals |
|
EN
55022:1998 (CISPR 22:1997), Class B - Emission, Europe |
|
EN
55024:1998 - Immunity, Europe (using line input) |
|
EN
61000-3-2:2000 - Power, Harmonic current emission |
|
EN
61000-3-3:1995+A1-Power, Flicker and inrush current |
|
FCC
part 15, Subpart B, class B demonstrated by compliance with
EN 55022 (CISPR 22) |
|
C-Tick
AS/NZS 3548 - Australia |
|
Safety:
EN 60950 |
|
Safety:
UL, CSA (power supply only) |
|
|
|
|
