 Network
Video Solution
VS2400+
/ VS2401+ Video Servers
Follow-ups to the
world's most sold video servers

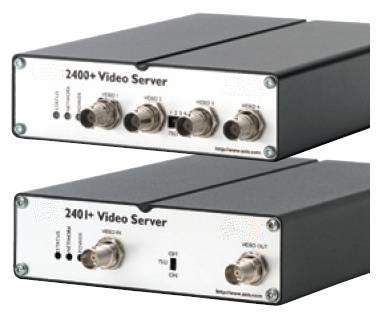

VS2400+
/ VS2401+ Video Servers are high performance video servers designed
for professional surveillance applications, giving increased memory
and performance compared to their predecessors.
Connecting
directly to an Ethernet network or modem, VS2400+ can accommodate
up to four analog video streams, whereas VS2401+ accommodates
a single video input stream and a video output for the connection
of an analog monitor. Transforming traditional analog video into
high-quality digital images, these video
servers provide a comprehensive single box solution for video
transmission over intranet networks, or the Internet.
Easy
to install and use, a professional surveillance application can
be up and running in minutes. The system is as open or as closed
as you like.
 |
Features |
 |
Live
video and remote monitoring |
| |
-
with standard TCP/IP networks |
|
Increased
memory and performance |
|
High
quality motion-JPEG images at up to |
| |
30
frames per second |
|
Support
for Pan, Tilt, Zoom units |
|
Built-in
Web Server |
| |
|
|
| Technical
Specifications - VS2400+ / VS2401+ Video Servers |
| |
|
| General |
 |
 |
Use
as a standalone system or added on to existing |
| |
CCTV
systems |
|
Remote
configuration and status using Web based tools |
|
PPP/Modem
support |
|
Event
handling including mail, TCP, HTTP and FTP |
| |
notification
and video upload |
|
|
Audio
functionality available in combination with the AM2191 Audio
Module |
| System
Requirements |
|
Compatible with: |
|
Operating
systems such as Windows 2000, Windows XP, Windows NT, Windows
ME and |
| |
Linux |
|
Web
browsers such as Internet Explorer 4.x, 5.x, 6.x or Netscape
Navigator 4.x |
| Hardware
& System |
|
CPU: ETRAX 100LX, 32 bit RISC, 100 MIPS |
|
Compression
chip: ARTPEC-1 |
|
4
MB Flash memory |
|
32
MB SDRAM |
|
100baseTX
Fast Ethernet or 10baseT Ethernet |
|
Network protocols: TCP/IP, HTTP, FTP, SMTP, NTP, ARP, DHCP,
BOOTP and more |
|
Based
on Linux version 2.4 operating system |
| Connections |
| Network |
|
RJ45:
10Base-T/100Base-TX Ethernet networks |
| Video
Inputs |
|
The
VS2400+ has four BNC composite video inputs with 75/Hi Z termination |
|
The
VS2401+ has a single BNC composite video input with 75/Hi
Z termination and |
| |
one
BNC video loop-through port |
|
Auto
sensing for NTSC and PAL |
| I/O |
|
A
single Terminal Block connector providing four opto-isolated
alarm inputs and a single |
| |
output
relay |
| Serial
Connectors |
|
9
pin D-SUB RS-232 max 115 Kbit/s |
|
9
pin D-SUB RS-232 or RS-485/422 half duplex, max 115 Kbit/s |
| Power |
| 3
alternative power sources: |
|
External
power supply 12V DC, 9.6 VA (PS-D, included) |
|
9-20V
DC, min 10VA |
|
6-30V
DC, min 7W |
| Video |
| Frame
Rate |
|
Image frame rate: up to 25 (PAL)/30 (NTSC) frames/second |
|
Bandwidth
control prevents data saturation on the network |
| Compression
|
|
Motion-JPEG
video, as well as JPEG still images |
| |
 |
|
5
levels of compression are available. The file size of a JPEG
compressed image depends on |
|
|
the
actual content of the image. Images containing a lot of detail
will generate larger files. Image quality is controlled through
the level of compression. High compression yields smaller
files at the expense of image quality, while low compression
results in larger files, but maintains image quality. The
table above shows average file sizes, derived from real life
tests |
| Resolution
|
|
QCIF:
176 x 112 (NTSC), 176 x 144 (PAL) |
|
CIF:
352 x 240 (NTSC), 352 x 288 (PAL) |
|
4CIF:
704 x 480 (NTSC), 704 x 576 (PAL) |
| Video
Features |
|
Date
and time stamp and text overlay. Color control (B/W or color) |
| Security |
|
User
level password protection for restricted camera access |
| Pre/Post
Alarm Buffer |
|
Up
to 12 MB memory available for pre/post alarm image storage,
i.e. approx. 16 minutes of |
| |
video at one frame/second, CIF resolution, normal compression |
| Pan/Tilt/Zoom |
|
PTZ
support for remote camera control. Currently supported units
and protocols include: |
| |
EVI-G20/21, EVI-D30/31, EVI-D100/100P, Canon VC-C4/VC-C4R,
Videmech 682/555rx, Ernitech ICU-PTZ S, Pelco DD5-C, Ultrak
KD6/Smartscan III, Kalatel KTD-312, Surveyor TransitRCM, Daiwa
DMP15-h1, Videor Tech. VPT42RS, Videotronic KON 485/HDI-5DE/SN-15AH,
VCL 8กจ Microsphere, Lilin PIH717, IVC Pan/Tilt, Panasonic
WV-CS850/854, Panasonic CS850A/854A, Molynx D05RX/L, Sensormatic
SpeedDome Ultra III, Philips CSI Autodome G3A |
|
Future support for other PTZ units will be added. |
| Firmware
Updates |
|
Flash memory allows firmware updates over the network, using
FTP over TCP/IP. |
| Customer
Applications |
|
Compliance
with the HTTP
API for applications and system integration |
|
Support
for shell scripting to allow user defined applications |
|
Up
to 0.5 MB available for storage of customer Web pages and
scripts |
| Operating
Conditions |
|
Temp:
5-50°C (40-125°F) |
|
Humidity:
20-80 % RHG |
| Dimensions
and Weight |
|
Height:
42 mm (1.7") |
|
Width:
145 mm (5.7") |
|
Length:
220 mm (8.7") |
|
Weight: 800 g (1.7 lb.) (excluding power supply) |
| Approvals |
| EMC:
|
FCC
Class A |
| |
EN55022/1994 |
| |
EN55024/1998 |
| Safety: |
EN60950 |
| |
UL |
| |
CSA |
|
